VIRTUAL TESTING OF DESIGN
Introduction
Manufacturing systems play a very important role in the future so, from observing product models we are getting that product data, and from that data computer-aided technologies enabled us to smooth data transfer. Simulations in the virtual world and the exchange of real-time product or design data are the benefits for today's manufacturing business industry.
There are different applications of virtual engineering technologies. We can consider virtual prototyping on a representative model. Today’s engineering world is highly interested in implementing virtual prototyping in its design and manufacturing process. Virtual testing of design provides cost-effective solutions from which we are experimenting with different models with different conditions.
Nowadays, there is strong competition in the market. Many of the companies focused on competitive factors such as better performance, short time to market, and competitive pricing. These competitive factors play an important role when they introduce new product brands in the market.
The traditional computer-aided design (CAD) and computer-aided manufacturing (CAM) approaches are now being addressed through computer-aided engineering (CAE) integrating platforms, which allow the evaluation and improvement of the product at the system level and not separately on its parts or subsystems, such an approach is reflected in increasingly efficient and competitive products.
Software Platform for Virtual Prototyping
There are three basic software solutions in the mechanical systems provided by the virtual prototyping platform. This is:
Computer-Aided Design
MultiBody System
Finite Element Analysis
Source: Wikipedia
With the help of cad software, different geometrical 3D model of mechanical systems is developed. The purpose behind that is to determine the mass and inertial properties of bodies, this is the first phase. In the next phase, this 3D model was transferred to multibody system software. In this phase, we are analyzing and optimizing the behavior of mechanical systems. Such as kinematics, dynamics, and statics. But the data transfer from CAD to MBS is not an easy task because we are using different geometry file formats. Such as STEP, IGES, etc. The based on the results observed in MBS software now transfer to finite element analysis software.
Virtual Prototyping Process

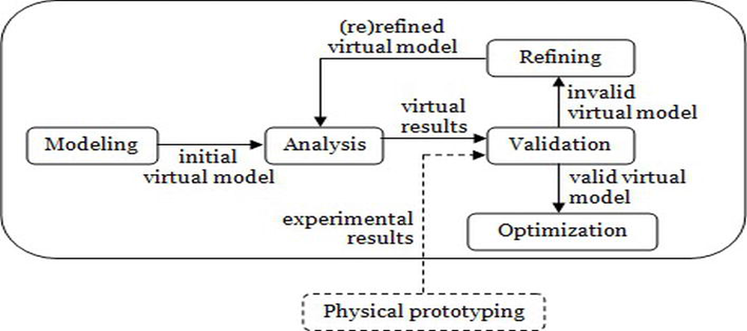

There are five foundations of the Virtual prototyping process, they are as follows:
Modeling
Analysis
Validation
Refining
Optimization
During the modeling stage different mechanical components are created by using software solutions. The output of this modeling stage is analyzed, analyzed means it is simulated and tested. From this analysis, we can determine the behavior of the system.
From the results obtained through simulation, we are considering the results with experimental results. And these experimental results were obtained from physical prototyping. If these observing and experimental results are the same or approx. Then only we validate the virtual model. If results obtained through the simulation do not match with experimental results then we consider it as an invalid virtual model.
The last step of the virtual prototyping process will be the optimization, which aims to determine the optimal design of mechanical systems, here we use word optimization for functionality, efficiency, and how economical the product is. These are determining factors in this last stage of optimization.
Refining plays an important role where we are getting results of invalid virtual models in the validation stage. The refining stage must be accomplished with the purpose to improve the fidelity of the virtual model by reference to the physical one. The refined virtual model is then analyzed by simulation in a virtual environment, followed by a new validation.
Source: Wikipedia
Advantages:
Shorter time to market:
The traditional product development process involves building a physical prototype and passing it to the lab for testing. This process takes a longer time. But using virtual prototyping design software we are discarding these unnecessary loops. Due to this, we save both time and cost of development as a result.
High Design Quality:
Performing engineering calculations using a spreadsheet and then building and testing a prototype can miss some fundamental errors. These errors might result in design flaws that will not become apparent before the product gets manufactured and distributed, resulting in warranty costs and even recalls.
More competitive product:
Virtual prototyping, on the other hand, is far less costly and time-consuming and allows engineers to freely experiment with innovative designs and scenarios, developing a highly competitive product in terms of functionality, performance, and exterior design.
Disadvantages:
Developer misunderstanding of user objectives:
For every project to be successful, developers and customers must be on the same page and share the same project objectives. If customers require all proposed features of a prototype to be included in the final product, this can lead to team and mission conflicts.
Excessive Development Time:
Remember, prototypes are by nature designed to be developed quickly. If a developer spends too much time developing a complex prototype, the project can run into roadblocks especially if there are disagreements over prototype details and run over both time and cost budgets.
Conclusion:
The use of virtual prototyping software platforms in the analysis and optimization of mechanical systems offers important benefits, which focus on reducing the costs, as well as the design and development time. While increasing the quality in terms of operational performance of the product by using virtual prototype design we have simulated any type of materials model.
